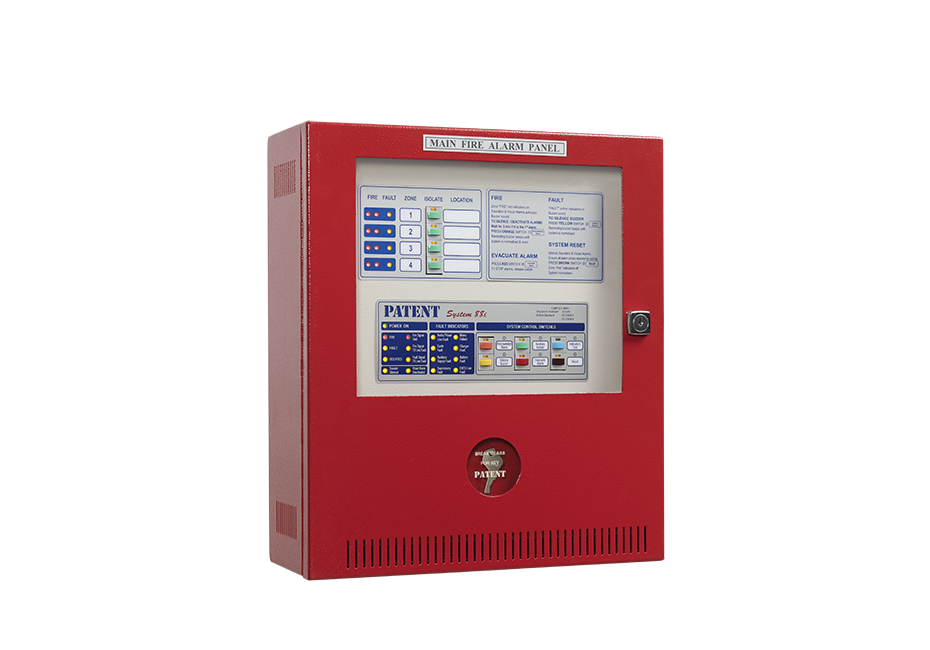

PS88i MAIN FIRE ALARM PANEL

4 to 128 Zones

System 88i conventional fire alarm panels provide cost effective and dependable means of fire detection, alarm, monitoring and ancillary controls. Simple to operate and without proprietary system protocol, cost to upkeep is better managed. Retrofit works can be carried out by any trained fire contractor. Designed by our in-house engineers and coupled with local production, panels & modules can be custom-built to suit specific design configurations and replacement needs.

• Listed under Product Listing Scheme, certified by TÜV SÜD PSB

• Complies to SS 645 and EN54 Parts 2 & 4

• Compact modular design

• Compatible with most types of 2 or 4 wired conventional detectors

• Networkable with major brands of conventional panels that are certified to CP10 or  SS645

• Wide range of charger capacity, from 2 to 22A to meet most load demand



Scroll Right To View More Details

Standard Main Panel

Zones

Battery Space

Charger

Dimensions (HxWxD)


PS88i-4M 4 Zones 7AH 2 Amp 420 x 350 x 145mm
PS88i-8M 8 Zones 7AH 2 Amp 420 x 350 x 145mm
PS88i-12M 12 Zones 7AH/12AH 4 Amp 500 x 350 x 145mm
PS88i-16M 16 Zones 7AH/12AH 4 Amp 500 x 350 x 145mm
PS88i-20M 20 Zones 12AH 4 Amp 570 x 350 x 145mm
PS88i-24M 24 Zones 12AH 4 Amp 570 x 350 x 145mm
PS88i-28M 28 Zones 12AH 4 Amp 670 x 350 x 145mm
PS88i-32M 32 Zones 12AH 4 Amp 670 x 350 x 145mm
PS88i-36M 36 Zones 12AH 4 Amp 650 x 480 x 170mm
PS88i-40M 40 Zones 12AH 4 Amp 750 x 480 x 170mm
PS88i-44M 44 Zones 18AH 4 Amp 750 x 480 x 170mm
PS88i-48M 48 Zones 18AH 6 Amp 750 x 480 x 170mm
